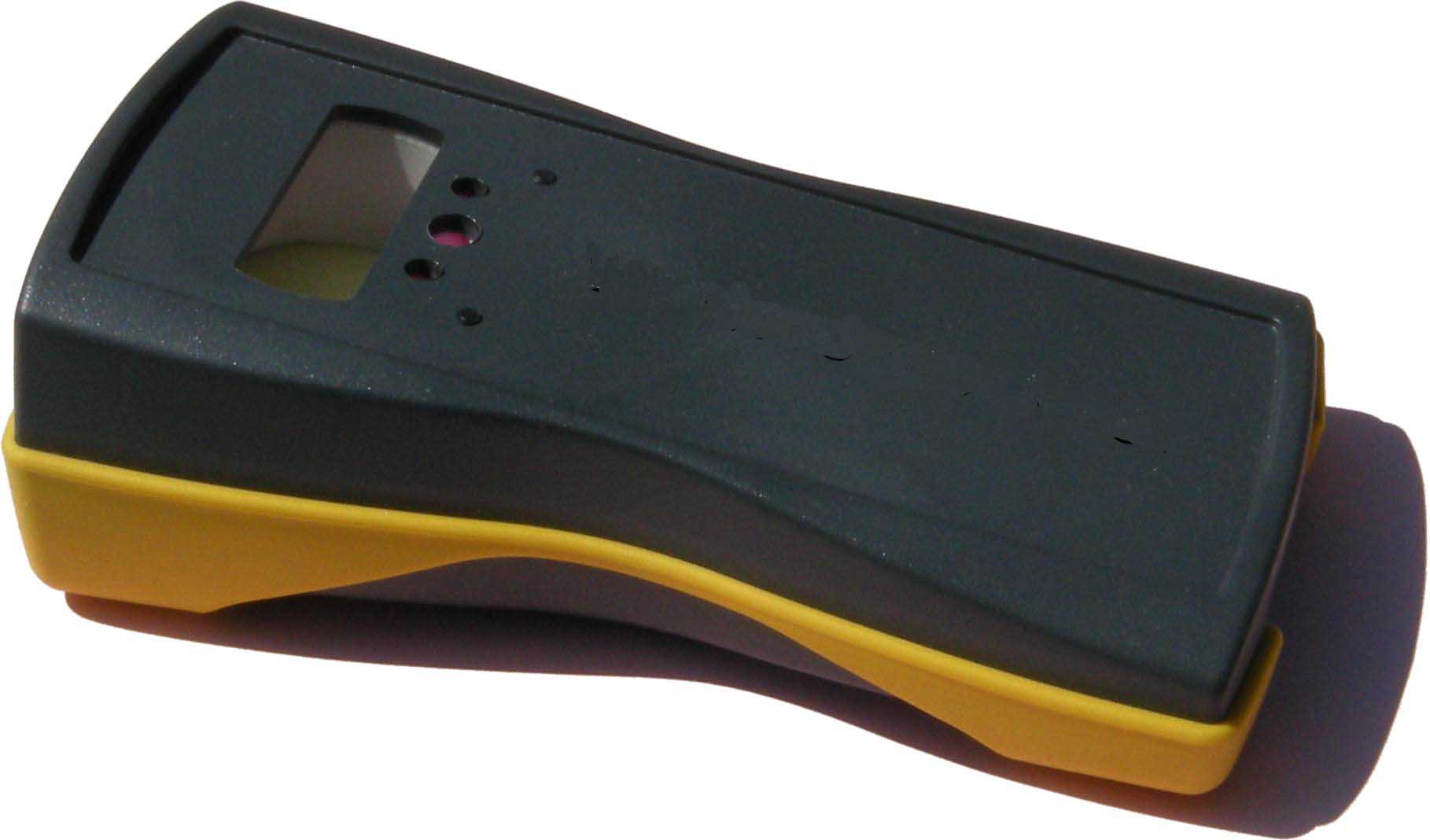

TANGO

Por el momento Tango trabaja con 601 modulos de inmobilizadores. Actualizando mensualmente mas modelos.

"Genera imagen de TP22, TP23, TP24 y TP25, Compatible para Mega Copy, Zed-Bull, etc. uno cada 24 hrs."

"Escribe componentes de seguridad 7 bytes Megamos ID: 48"

Tango puede generar transponder PCF7943 y PCF7944 para BMW CAS, puede desbloquear y escribir .

Exclusivo Megamos cálculo crypto-48.

El dispositivo está diseñado para la programación de transponders, que son parte del sistema inmovilizador del automóvil.

A diferencia del modelo anterior el Gambit, el nuevo modelo Tango es el dispositivo de dos bandas que ha permitido
agregar a la lista los transponders de la firma (Tiris ©).

La lista actual de compatibilidad para los transponders es:

Transponders Philips:

PCF7930-31 escritura, lectura
PCF7935 escritura, lectura, memoria "shadow", calculador crypto
PCF7936 escritura, lectura, modos password, crypto, Manchester & Biphase codificados
PCF7941 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7942 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7943 transponder, remoto, Manchester & Biphase codificados
PCF7944 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7945 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7946 transponder, remoto, Manchester & Biphase codificados
PCF7947 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7952 transponder, remoto, eeprom, Manchester & Biphase codificados
PCF7961 transponder, remoto, Manchester & Biphase codificados
*Cambio automático entre las ventanas PCF7936 … PCF7961 si detecta tipo no válido.
*Autodetección de  manchester / biphase

Temic transponders:
Temic 11 escritura, lectura to T5
Temic 12 escritura, lectura to T5

Megamos transponders:
Megamos (13) escritura, lectura to T5 , emulating on PCF7930-35
Megamos (48) escritura, lectura, PIN, unlock by PIN,
full range of memory contents, crypto calculation
Megamos CRYPTO-2 (8E)

Texas transponders:
Tiris (4C) lectura
Tiris (4D) DST escritura, lectura, crypto calculator
Tiris (4E) DST crypto escritura, lectura, crypto calculator

Atmel:
TK5551M (T5 replacement)

SAAB escritura, lectura to T5

The product is in working out stages, therefore the list of the supported transponders will be developed later.

For the present moment Tango has the following built in free makers:

Key makers total: 601

Libres key makers:

ACURA
MDX (2001-2006)
MDX 2008-(24C04,HITAG)
RL (1996-2004)
ALFA ROMEO
145 (1995-2001)
146
155
156 (1998-2001)
164
166 (1998-2003)
GTV
Spider
APRILIA
Dorsoduro
Mana
Shiver
SR50
ASTON MARTIN
DB9 2004-
AUDI
Immobox 4A0 953 234
Immobox 4B0953234 (ID48)
Immobox 8D0953234
A2 VDO 1999-2001 93C86, ID48
A3 VDO 1999-2001 93C86, ID48
A3 Magneti Marelli ID48
A3 (Micronas + 24C32, TP23)
A3 (24C32, TP23)
A4 VDO 1999-2001 93C86, ID48
A4 Magneti Marelli 1998-2001 ID48
A4 UKNSI 1998-
A6 VDO 1997-1998 93C66, ID13
A6 VDO 1998-2001 93C66, ID48
A6 VDO 1998-2001 93C86, ID48
A6 VDO crypto 2001-2004 93C86 ID48
A6 Magneti Marelli 1998-2001 ID48
A8 VDO 1999-2001 24C17, ID48
R8 (Micronas + 24C32, TP23)
R8 (24C32, TP23)
TT Magneti Marelli (9S12,ID48)
TT (Micronas + 24C32, TP23)
TT (24C32, TP23)
BENTLEY
Arnage 1998-
BESTURN
B50 2009-
B70 2006-
BMW
EWS1
EWS2
EWS3
EWS4
BRILLIANCE
BS6 2004- (ID13)
Zhonghua Junjie (24C01, HITAG)
BUICK
Park Avenue 2002-2008
Randezvouz 2003-2008
CHANG’AN
Ben Ben (95040)
CHERY
A1 Kimo S12
A5
Eastar
Elara
Fora
QQ
Tiggo
CHEVROLET
Aveo
Aveo 2006- (93C76 HITAG)
Epica 2005-2009
Evanda 2003-2006
Spark 2008-(93C56,ID48)
Tacuma
CHRYSLER
300C 2005-2007
300C 2008…
Sebring 2001-
Voyager 2001-(24C02,ID4E)
CITROEN
Berlingo 1998
Berlingo 2000-2002
Jumper 1996
Jumpy
Xsantia 1998-1999
Xsara 1998-2001
Xsara 2000-2002
DACIA
Solenza
Super Nova
DODGE
Ram 2002-2005
Stratus 2001-
DAEWOO
Espero
Kalos 2002-
Lacetti 2002-
Lanos 1997-
Lanos 2000 (95020,ID13)
Leganza 2002-
Matiz 1998
Matiz 2001-
Nexia
Nubira 2000-
DAIHATSU
Cuore (ID4C)
Move (ID4C)
Sirion 1998
Storia (ID4C)
Terior (ID4C)
FERRARI
612 Scaglietti 2004- (ID48)
FIAT
Barchetta eeprom
Brava HC05 ID11
Brava eeprom ID11
Brava HC908 ID11
Bravo eeprom based
Bravo Siemens ID11
Bravo Delphi ID11
Bravo Magneti Marelli ID11
Cinquecento
Doblo (95040)
Ducato 1996
Marengo eeprom
Multipla eeprom
Multipla HC05 ID11
Multipla HC908 ID11
Palio
Panda eeprom
Punto
Scudo
Scudo (95040)
Seicento ID11
Temra eeprom
FORD
Cougar 1999
Courier
Escape 2005
Escort 1995
Expedition 1997
Expedition 2001
Explorer LTD 2007…
Explorer 1998 Motorola-based
Explorer 1998 TMS-based
F-100
Fiesta
93C56
Fiesta 93C86
Fiesta 95P04
Fiesta (77014, ID4C)
Focus 1998…2005
Focus 95P04
Focus 2007- (93C56)
Fusion 93C86
Galaxy 1995 gasoline (ID44)
Galaxy immobox 1995…1998
Galaxy 2007 (95320, ID60)
Ka 1996-2001
Ka 1999
Mondeo 1995
Mondeo 2001
Mondeo 95P04
Mustang 1997-2004
Probe Motorola-based
Probe TMS-based
Puma 1997…2001
Ranger 2001-
Scorpio
Taurus 1996
Taurus 2000…2003
Transit 1995-98
Transit 2000…
Transit 2003…
Transit 95P04
GILERA
Runner 125
Nexus 350
Nexus 500
GP800 (68HC05)
HONDA
Accord 1999…
Honda Accord 2002 24C04
Civic 1995
Civic 2001
Civic 2006
CR-V 1996
CR-V 1999-2006
Fit 2002 24C04
Jazz 2003-
Shuttle
HYUNDAI
Atos 1996-99
Accent 1996-99
Accent 95040
Accent 95160
Elantra 95040
Elantra 95160
Era 95040
Era 95160
Getz 95040
Getz 95160
H1
H200
Lantra 93C56
Lantra 93C66
Santa Fe 2009-(95320,HITAG)
Sonata 95040
Sonata 95160
INFINITI
Q45 (93C46,ID4C)
IVECO
Daily 1996
JAGUAR
S-Type
X-Type
XJ
JEEP
Gr. Cherokee 1999- ,24C02 ID4E
Gr. Cherokee 1999- ,Motorola ID4E
Commander 2006 (HITAG)
Liberty 2004-
KAWASAKI
Denso 21175-0046
Denso 21175-0053
Denso 21175-0097
Denso 21175-0098
Denso 21175-0109
Denso 21175-0170
Denso 21175-0173
Denso 21175-0220
Denso 21175-0227
Mitsubishi 21175-0017
Mitsubishi 21175-0079
Mitsubishi 21175-0158
KIA
Carens 2001-2006 (95P08,HITAG)
Carnival 2000-
Clarus 1999-
Rio 2001-2005
Shuma 2000… (ID48)
Sportage 2001 (ID60)
LANCIA
Dedra HC05 ID11
Delta HC908 ID11
Delta eeprom
Kappa 1995…2001
Ypsilon HC05 ID11
Ypsilon HC908 ID11
Ypsilon 1997 (68HC705)
LDV
Convoy 2000- (95P04,ID4D)
LINCOLN
LS 2000-
Navigator 1997…2000
Navigator 2000…2002
Town Car 1998
MAN
TGA trucks
MASERATI
GT HC05
GT HC908
Quattroporte 2004 (HC912 ID48)
MAZDA
323 1995
3 (93C56)
5 2005…
6 (24C02)
6 (93C56v1)
6 (93C56v2)
6 (93C66)
6 (dashboard)
626 Lucas
626 (Temic)
CX-9
CX-7 (24C04)
CX-7 (93C66)
RX-8
Tribute (95040)
Xedos 6 1995-
Xedos 9 1997-
MITSUBISHI
Carisma 1996…1999
Carisma 2000…
Colt 2004-
Eclipse 2006- (93C76 HITAG)
Galant
Galant 2004- (93C76 HITAG)
Grandis
Grandis 2003 (HITAG)
Grandis 2006
L200
Lancer
(HITAG)
Lancer 2008…
Magna
Nativa 2008-
Pajero
Pajero IV 2006-
Space Runner
Space Star 1999
Outlander (HITAG)
Outlander 2006…
Pajero Sport 2007…2009
NISSAN
Almera Classic (Samsung)
Almera Classic (Johnson Controls)
Altima 2005- (93C56,HITAG)
Altima 2005- (93C66,HITAG)
Interstar
Livina 2006-
Micra2002-
Murano 2003- (93C56,HITAG)
Murano 2003- (93C66, HITAG)
NATS-2
NATS-4
NATS-5
Note (HITAG)
Sunny 2006-2010 Korea
OPEL
Frontera 1995
Monterey 1996…99
Monterey (ID4E)
Movano
PEUGEOT
103
106 1997
206 1998-2001
206 cabrio 2000-2002
306 1997 (ID33)
306 1999 (ID33)
306 Siemens
406
4007 2008- (24C16,HITAG)
Boxer (ID13)
Elystar
Elystar
Expert 1996-2004
Expert 1999
JetForce
Partner 2000-2002
Spedfight 2
Squab
PIAGGIO
Immobox
ECU
PONTIAC
G3
G3 2009 (93C76 HITAG)
PORSCHE
911 1996…1999
Boxter 1996…1999
RENAULT
Avantime (Valeo, ID33)
Clio-1
Clio-2
Clio-3
Espace-III
Kangoo
Laguna 1998
Mascott
Master
Megane 1996-1999
Megane 2000-2003 (ID60)
Megane-2 (9S12, HITAG)
Symbol
Thalia
Trafic 1998
Twingo 1995…1998
Twingo 1998…2001
ROVER
Rover 75
Rover 600
Rover 618
Rover 620
Rover 800
Land Rover 2003
SAAB
9-3 1999-2003
9-5 1999-2003
2003- (HITAG)
SAIPA
Saba
SAMAND
Samand
SCANIA
R280, R470 etc
SEAT
Ibiza 2000- (ID48)
Ibiza MagnetiMarelli (9S12, ID48)
Marbella 1999- (68HC705,ID11)
Panda 1999- (68HC705,ID11)
SKODA
Octavia 1997-2000
Octavia (Micronas + 24C32, TP23)
Octavia (24C32, TP23)
SSANGYONG
Actyon (diesel)
Actyon (gasoline)
Korando 1998- (29Fxxx ID48)
Kyron (diesel)
Musso 1998- (29Fxxx ID48)
Rexton gasoline (29Fxxx,ID48)
SUBARU
Forester 2009
Impreza 1996…1998
Legacy 1996…1998
Legacy 2005…
Outback 1996…1998
Tribeca 2005…
SUZUKI
Alto 1996-2001
Alto 2002-
Alto 2006-(93C56, HITAG)
Baleno
Burgman
Grand Vitara
Ignis 2000-
Jimny 2002-
Swift 1996-2004 93LC66
Wagon R 1998-2003 (24C01, ID4C)
Bikes:
ECU Denso 01H00
ECU Denso 02H00
ECU Denso 05H01
ECU Denso 14GA0
ECU Denso 21H50
ECU Denso 37H00
ECU Denso 38H00
ECU Denso 41G50
ECU Keihin 32920-15GA0
ECU Keihin 32920-05H00
ECU Mitsubishi 37146-42F00
TAGAZ
Road Partner (29Fxxx, ID48)
VOLVO
850
940
S40
V70 (eeprom 93C56)
V70 (eeprom 93C66)
FH12 (ID44)
FL250
VW
6X0953257 immo box
Caddy (Micronas + 24C32, TP23)
Caddy (24C32, TP23)
Crafter (9S12, ID48)
Fox Delphi 2008- (93C56,ID48)
Fox 2005- MagnetiMarelli (9S12,ID48)
Gol immobox
Gol (Micronas + 24C32, TP23)
Gol (24C32, TP23)
Golf4 dashboard RB8 (24C08, ID48)
Golf4 dashboard MotoMeter 2002- (93C56,ID48)
Golf5 (Micronas + 24C32, TP23)
Golf5 (24C32, TP23)
Jetta (Micronas + 24C32, TP23)
Jetta (24C32, TP23)
Polo MagnetiMarelli (9S12, ID48)
Tiguan (Micronas + 24C32, TP23)
Tiguan (24C32, TP23)
Touran (Micronas + 24C32, TP23)
Touran (24C32, TP23)
Motorola based immo box
TMS based immo box
LT 28, 35 ,46
YAMAHA
Immobox Moric
ECU Mitsuba
Calculators:
VIN to PIN for Hyundai & KIA
Renault: Keycode to PINcode (infrared keyfob)
Image Generators :
ID33 Mazda
ID33 Nissan
ID33 Opel
ID33 VW
ID40 Opel
ID40 Chery
ID40 Samand
ID41
ID42
ID44 (VAG)
ID45
ID46 (Mitsubishi)
ID46 (Peugeot 206,307)
ID60
ID61
ID62
ID63
ID64 (Subaru)
ID65
TP22
TP23
TP24
TP25
Mercedes C-,E- Class 1996-99
Mercedes G- Class 1996-99
Utilites :
Unlock Chrysler HITAG key
Unlock Honda Civic 2006- HITAG key
Unlocker Suzuki Grand Vitara, Alto 2005-
Write Component Security Tool
_________________________________________________________________________

Pagar key makers:

ALFA ROMEO
147 ID48
159 ID48
GT ID48
AUDI
EZS Megamos 8E
Kessy Hitag
BMW
Bikes (HITAG)
CAS1 remoteless
CAS2 remoteless
CAS3 remoteless
CAS1 remote
CAS2 remote
CAS3 remote
CADILLAC
Catera 1997-1999
DTC 2006…
Escalade 2006…
SRX 68HC908 2004…
SRX 95040
CHEVROLET
Caprice 2006-
Captiva
Cobalt 2004-
CHRYSLER
Crossfire 2004-2007
Pacifica 2004- (95040, HITAG)
Pacifica 2005- (95080, HITAG)
Town & Country 2004-(95080,HITAG)
Voyager 2004- (95040, HITAG)
Voyager 2004- (95080, HITAG)
CITROEN
Jumper 1999…(ID48)
Jumper 2006
Nemo 2007-
Relay 2006
DACIA
Logan 2004… (Hitag2) Siemens v1
Logan 2004… (Hitag2) Siemens v2
Logan 2004… (Hitag2) v2
DAF
2002…2008
DAIHATSU
Terios 2006-
YRV 2002-
DODGE
Caravan 2004
Caliber 2007-
Nitro 2007-
DUCATI
696
748
749
848
999
1000
1098
1198
Monster
Sporttouring ST3
FIAT
Albea ID48
Doblo 2000-2005 Delphi ID48
Doblo 2000-2005 Magneti Marelli ID48
Ducato 2001- ID48
Ducato 2006
Grande Punto 2005-
Idea ID48
Linea 2007-
Multipla ID48
Palio 2002- ID48
Punto 1999…2005 Delphi ID48
Punto 1999-2005 Magneti Marelli ID48
Punto 2007
Seicento 2000 ID48
Seicento 2000 Magneti Marelli ID48
Siena ID48
Stilo 2000-2005 Delphi ID48
Stilo 2000-2005 Magneti Marelli ID48
Stilo 2007
500
FORD
C-Max 2003…2009
Focus 2004…2009
Focus 2008-
Mondeo 2008-
Transit (BSI HC9S12)
Transit 2004 (95080, 95160, 95320)
GILERA
Nexus 125
Fuoco 500
GM
Cadillac Escalade
Chevrolet Tahoe
Chevrolet Suburban
Chevrolet Trail Blazer
GMC Envoy
GMC Sierra
GMC Yukon
GMC Denali
HONDA
Motorcycles all models
ISUZU
Ascender
Rodeo 1998- (ID48)
IVECO
Daily 1999…(Hitag2)
Daily 2007 (95160,ID48)
Daily 2007 (95320,ID48)
Stralis 2002- (Hitag2)
LANCIA
Lybra ID48
Ypsilon 2007
MERCEDES
ML-seria (AAM)
ML-seria (EAM)
supported cars: All ML-seria cars
UNIVERSAL MAKER (by motorola mcu maskset)
supported masksets:
0D53J
0D66J
0D69J v.1
0D69J v.2
1D69J v.1
1D69J v.2
supported cars:
All passenger cars with transponder keys
ACTROS
supported trucks: All Actros
ATEGO
supported trucks: All Atego
AXOR
supported trucks: All Axor
ECONIC
658
VITO
supported cars: All Vito
SPRINTER
supported cars: All Sprinter
OLDSMOBILE
Bravada
OPEL
IMMO-1 (Motorola MC68HC05B based)
IMMO-2 (TMS based)
Antara
Astra-H 2004-2006
Astra-H (HITAG2)
Combo 2001-2005
Corsa 2001-2005
Frontera 1999 (Megamos 48)
Meriva 2002-2004
Movano 2003…2007 (Hitag2)
Vectra-C 2002-2004
Vectra-C (HITAG2)
Vivaro 2002… (Hitag2)
Zafira (HITAG2)
PEUGEOT
Bipper 2007-
Boxer 2002 (ID48)
Boxer 2006
RENAULT
Espace-IV (Hitag2)
Master 2002… (Hitag2)
Midlum 2002… (Hitag2)
Kangoo 2002… (Hitag2)
Kangoo 2008… (Hitag2)
Laguna-2 (eeprom 95160, Hitag2)v.1
Laguna-2 (eeprom 95160, Hitag2)v.2
Logan 2003
Modus 2004… (Hitag2)
Symbol Siemens v1 (Hitag2)
Twingo 2002… Siemens v1(Hitag2)
Twingo 2002… Siemens v2(Hitag2)
Twingo 2002… Sagem
Trafic 2002… (Hitag2)
Vel Satis (Hitag2)
RENAULT TRUCKS:
Premium 2001…2006
Premium 2007… (Hitag2)
Magnum 2000-2004
Magnum 2004-2008
ROVER
Land Rover 2006… (HITAG2)
Land Rover Freelander (25320, HITAG2)
Range Rover Vogue (HITAG2)
Range Rover Sport (HITAG2)
Range Rover Supercharged (HITAG2)
SUZUKI
LX7 2006-
TOYOTA
Avalon ECU-93C56 (ID4C)
Avalon ECU-Motorola (ID4C)
Avensis immobox-Motorola (ID4D)
Avensis immobox-Motorola (ID4C)
Avensis ECU-93C56 (ID4C)
Camry ECU-93C56 v.1 (ID4C)
Camry ECU-93C56 v.2 (ID4C)
Camry ECU-93C86 (ID4C)
Camry ECU-Motorola (ID4C)
Camry immobox-93C66 (ID4C)
Carina (ID4C)
Carina 1996-(24C04,ID33)
Celica ECU-24C04 (ID33)
Corolla immobox-93C66 (ID4C)
Corolla ECU-93C56 (ID4C)
Corolla ECU-24C02 (ID4C)
Corolla ECU-25020 (ID4C)
Corolla ECU-95080 (ID4C)
Crown Majesta (ID4C)
Duet (ID4C)
Echo ECU-25040 (ID4C)
Echo ECU-93C66
Estima immobox-24C04 (ID33)
Hiace
Land Cruiser immobox-93C66 (ID4C)
Land Cruiser ECU-93C56 (ID4C)
Lexus RX300 (ID4C)
Lexus ES300 (ID4C)
Lexus IS200 (ID4C)
Lexus GS300 1998-2004
MR2 (93C56, ID4C)
Paseo immobox-24C04 (ID33)
Passo
Picnic 1999- (93C66,ID4C)
Previa immobox-24C04 (ID33)
Prius immobox-93C66 (ID4C)
RAV4 ECU-25080(ID4C)
RAV4 (93C66,ID4C)
Rush
Solara (ECU 93C56)
Starlet immobox-24C04 (ID33)
Yaris 2001 ECU-25020(ID4C)
Yaris 2002 ECU-95080(ID4C)
Yaris 2003 ECU-95040(ID4C)
Calculators:
AD100 Out - In codes 8 digits

Such interconnection of two various products considerably facilitates manufacturing of keys for cars as immobilizer data reading on the diagnostic channel and creating of a new key occur in completely automatic mode, expelling thereby possible errors of the operator. Such method is most progressive of known for the present moment. Connection to above specified software products grows out of joint cooperation and has a technical support from both parties.

The device has ergonomic design with high mechanical characteristics of  IP65 class according to the DIN EN 60529 standard. The device has following dimensions:

length   160 mm
width    80 mm
height   50 / 30 mm

The device enclosure is made of  3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element. The seal also prevents the device sliding on a work table surface.

Also as well as the Gambit, the device derives the power from USB and does not demand connection of an external power source. Difference is use of drivers of other type that allows to avoid conflicts to other devices working through virtual ports.

Unlike the Gambit, the device has wide slot for keys of any size and three small holes of various depth for transponders of any sizes.

LED indication unlike Gambit is taken out on the upper cover of the case that is solution more convenient in using.

The program interface has the modern intuitive design favorably differing from the interface of Gambit.

Meeting modern requirements, Tango supports OS Vista that was not  realized in Gambit. Supported versions of Windows:

Win 98
XP
Vista
Win 7

Precio $ 20,000.00 MX mas envío.
